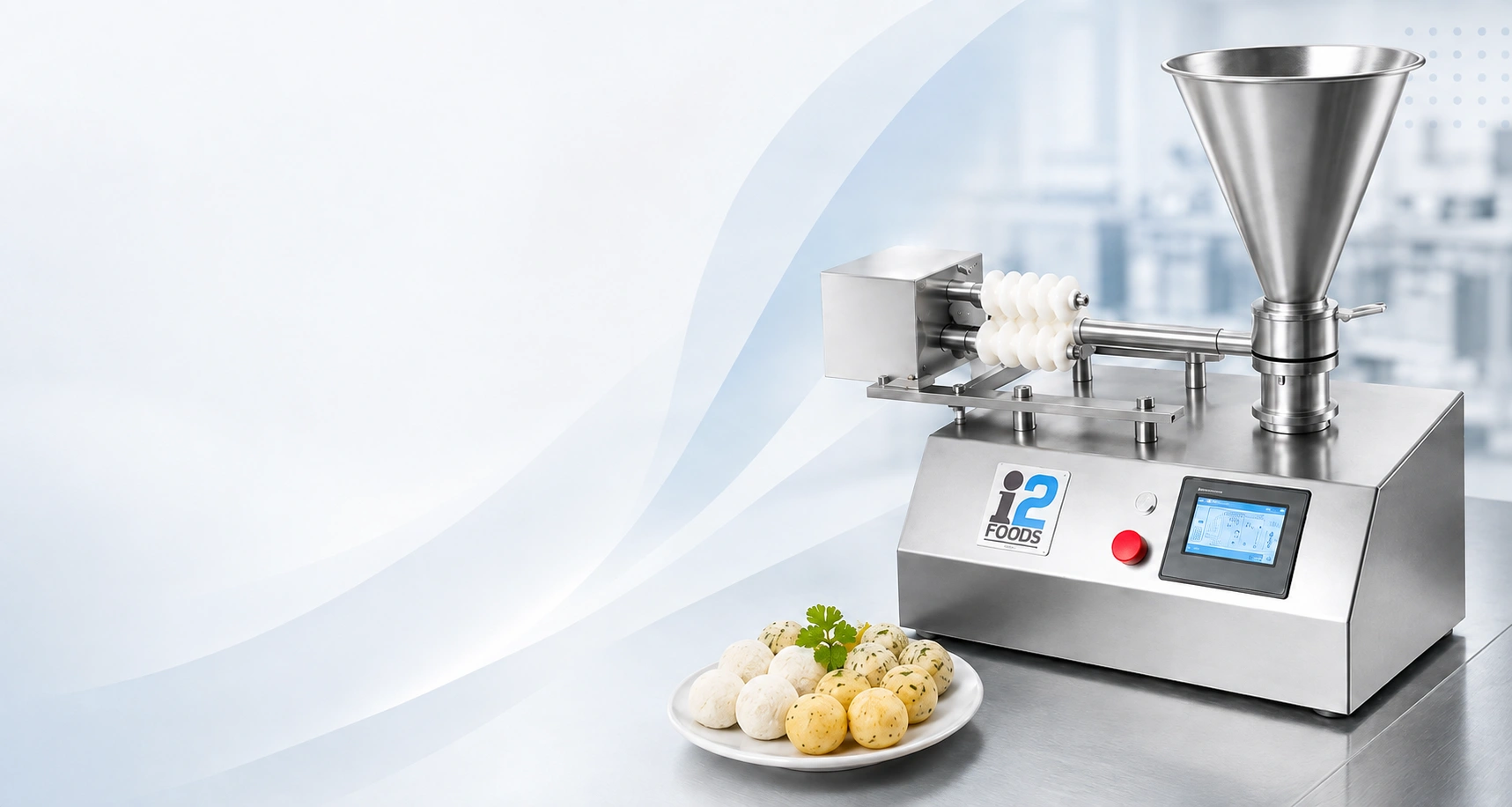

BALL FORMING MACHINE
Machine for producing cheese balls, dumplings and potato products
A semi-automatic machine for forming cheese and potato balls, dumplings and croquettes of consistent size and shape. Output: 80–90 kg/h.
Stainless steel housing, PLC/HMI control and quick-release working components. For dairy and prepared-food facilities, HoReCa and frozen convenience food production.
Stainless
steel
PLC/HMI
control
Output
80–90 kg/h
Quick-release
design
Products you can make
On this machine
-
Cheese balls -
Cottage cheese balls
-
Galushky (dumplings)
-
Potato balls
-
Potato croquettes
-
Potato and cheese balls
-
Dough balls and dough products
-
Mixed-ingredient productsCheese + flour, potato + cheese, potato + herbs

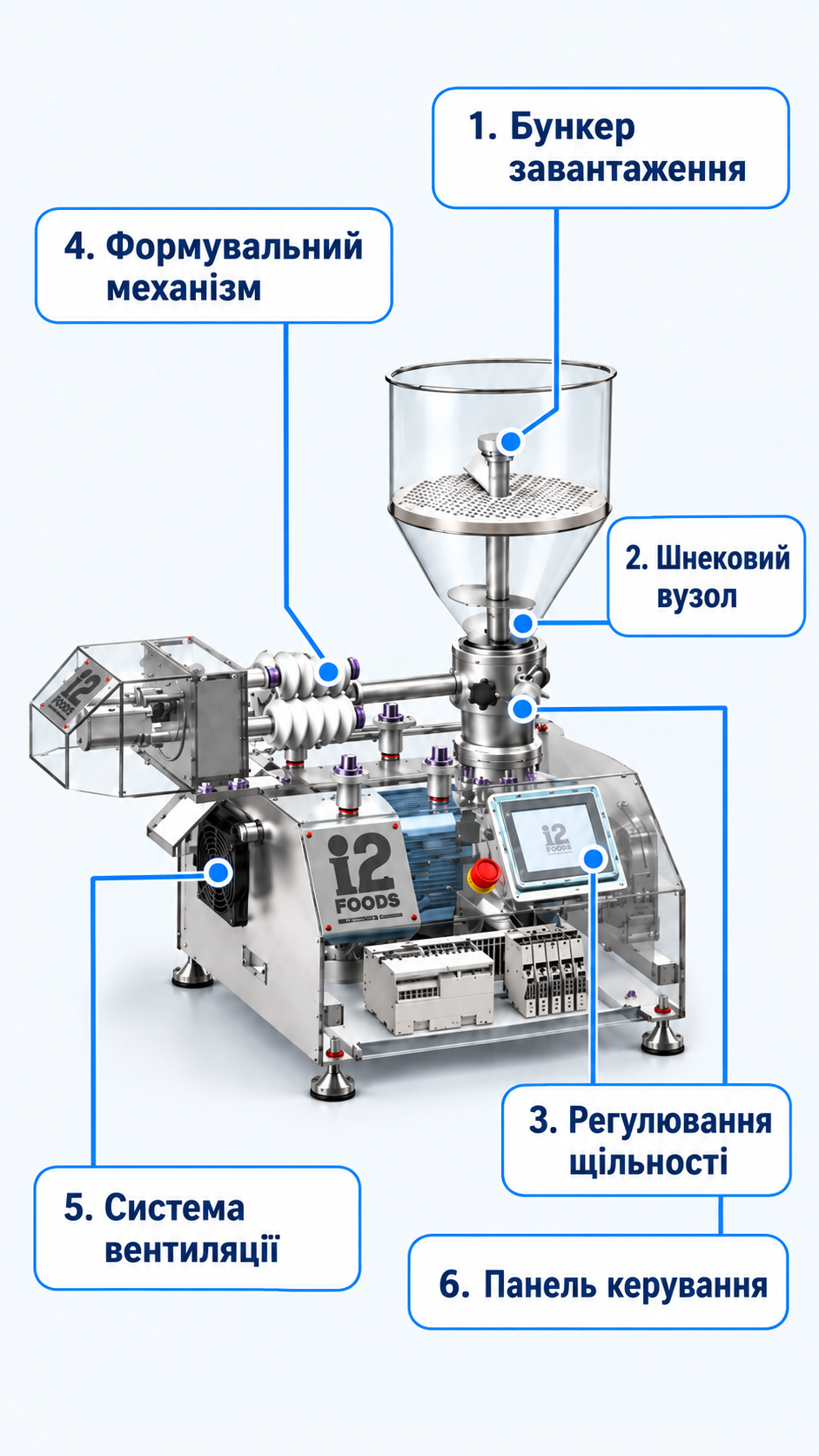

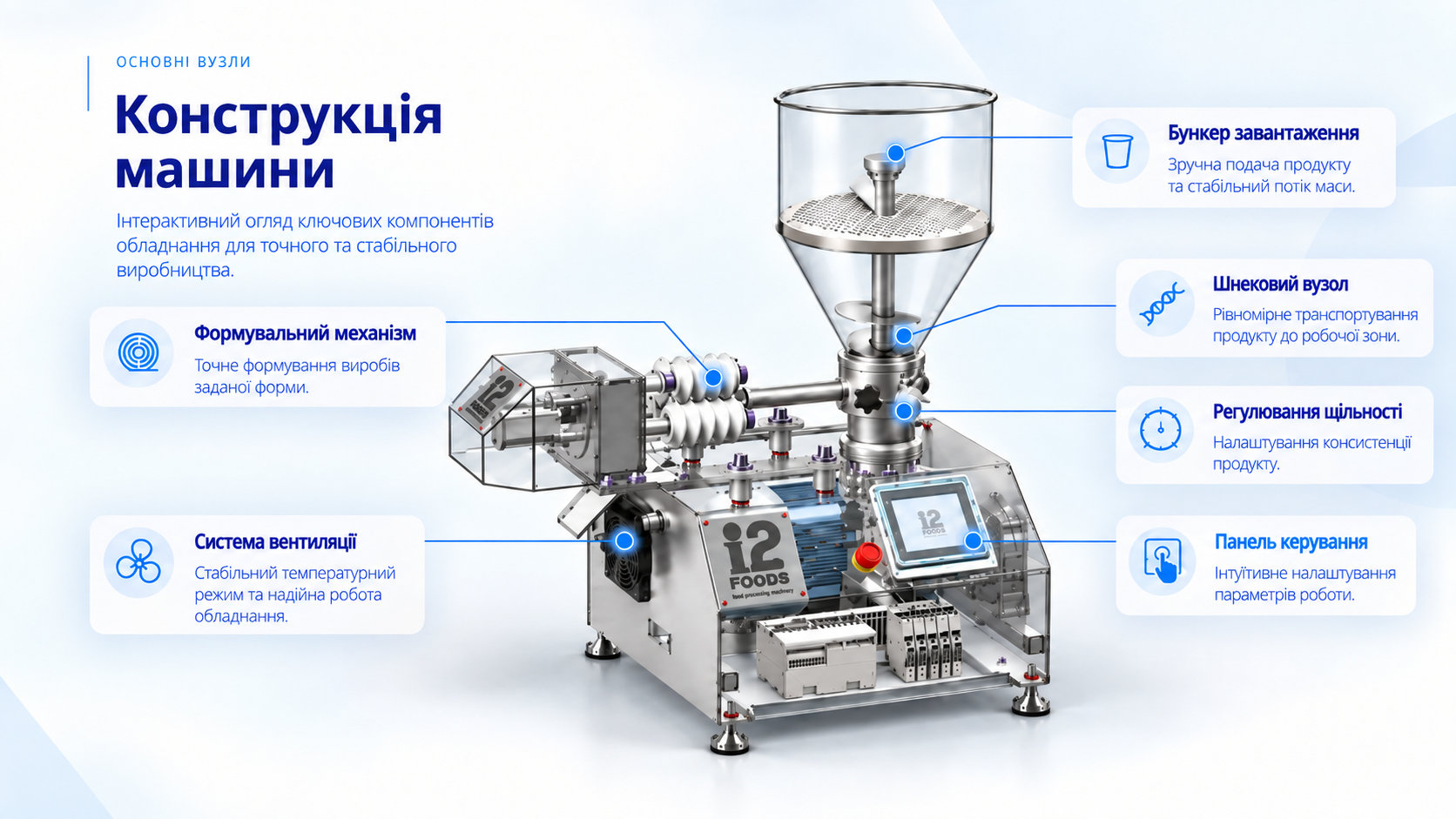

1. Loading hopper
2. Auger unit
3. Density adjustment
4. Forming mechanism
5. Ventilation system
6. Control panel

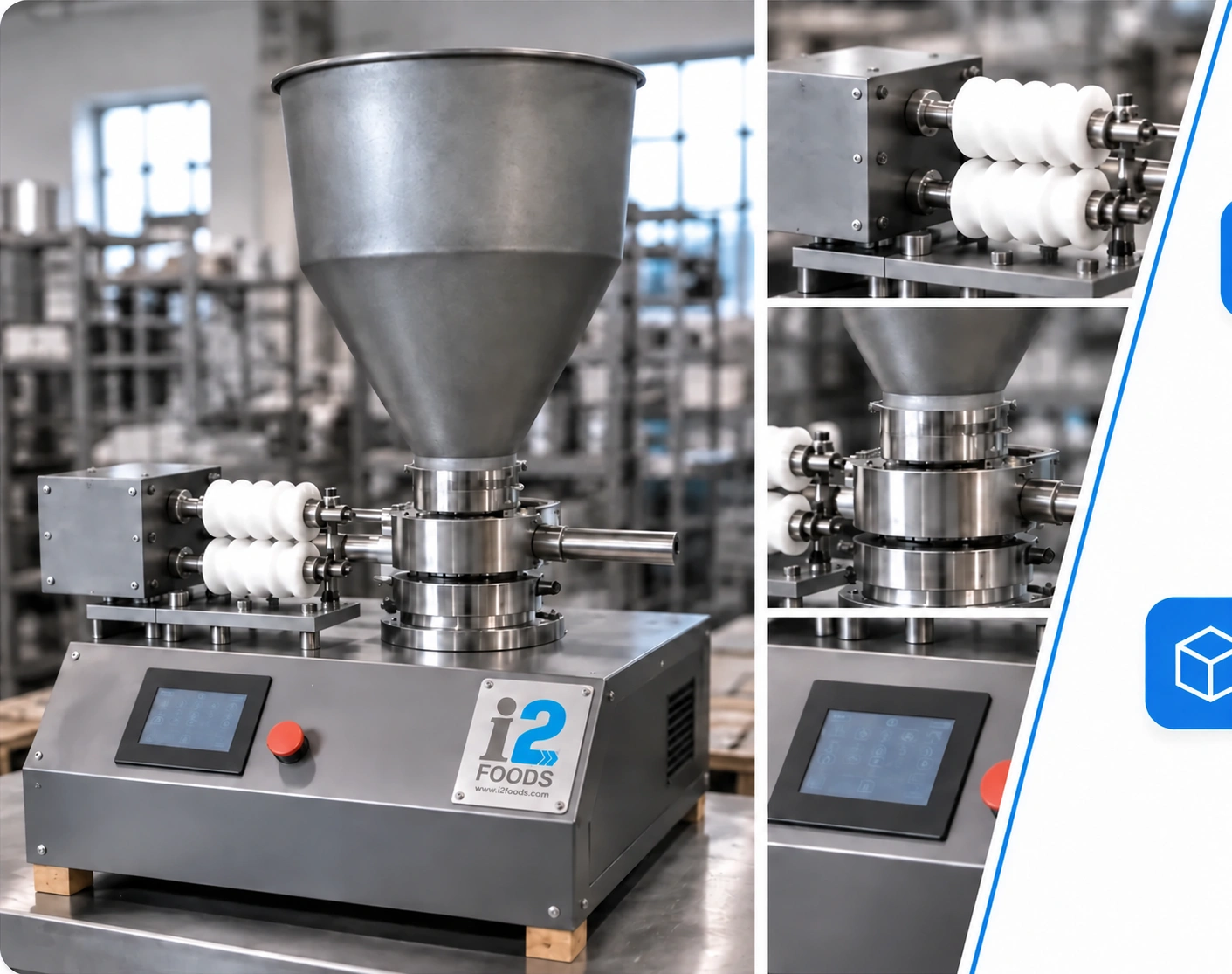

Machine
design
An overview of the key equipment components for precise, consistent production.
Loading hopper
Convenient loading and a steady flow of mixture.
Auger unit
Even product transfer to the working area.
Density adjustment
Adjusting product consistency.
Forming mechanism
Precise forming to the required shape.
Ventilation system
Stable operating temperature and reliable equipment performance.
Control panel
Intuitive adjustment of operating parameters.

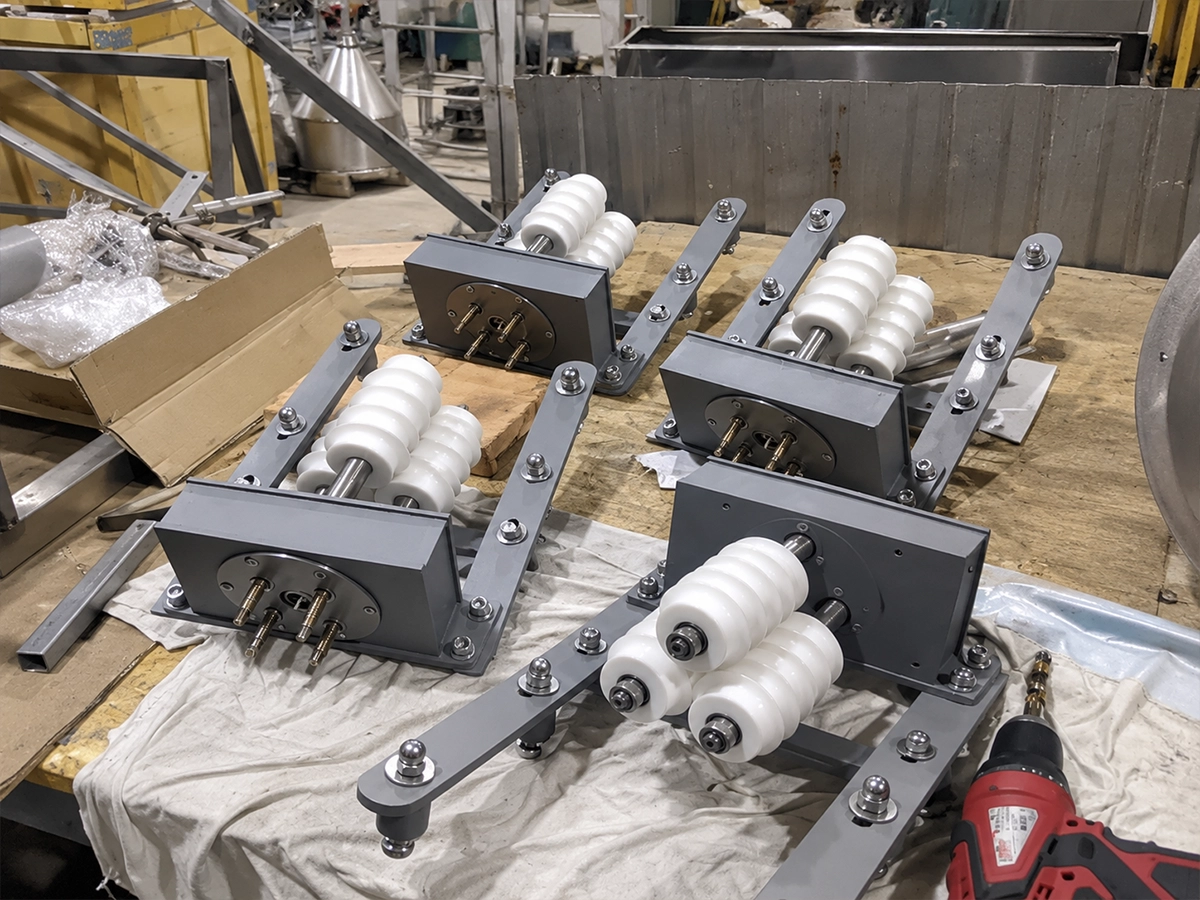

Four forming units — different ball sizes
Easily change forming units to produce the required ball size.
- Ø 40 mm
- Ø 30 mm
- Ø 20 mm
- Ø 10 mm
Need a configuration for your product?
Send us the mixture type, desired product weight, ball diameter and required output. Our engineers will help select settings, tooling and a machine configuration for your production process.
Production planning and integration
The machine is a separate piece of equipment that performs forming. It can be installed as a standalone machine or integrated into an existing production process.
-
Mixture
preparation -
Loading
into the hopper - Forming
-
Product
collection -
Boiling /
frying /
baking - Cooling
- Freezing
- Portion packing
- Packaging
Production process
From loading the mixture to forming finished balls

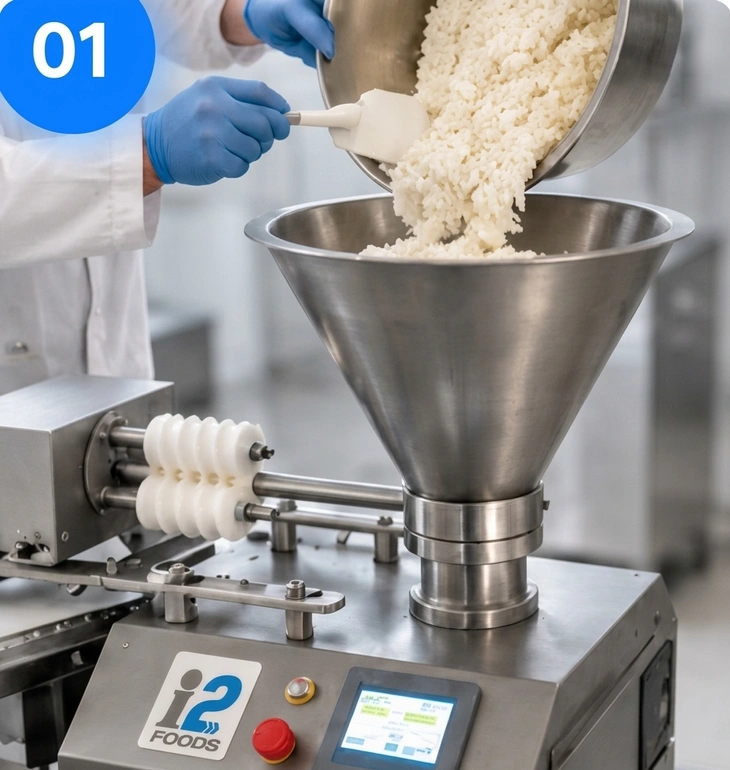

01Loading the mixture
The operator loads the food mixture into the machine hopper.

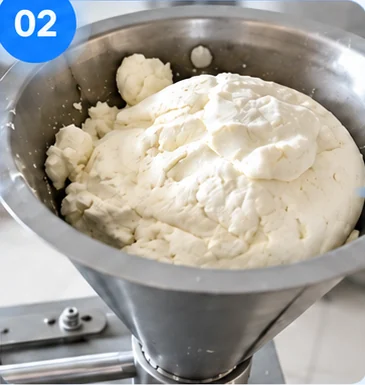

02Feeding the unit
The mixture enters the forming area.

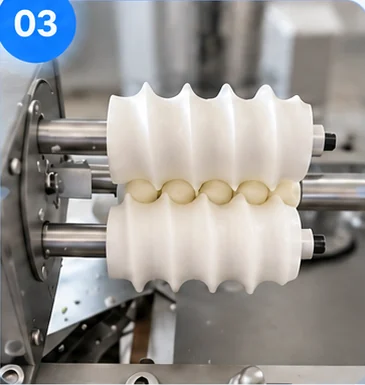

03Ball forming
Forming rollers produce balls of the specified size.

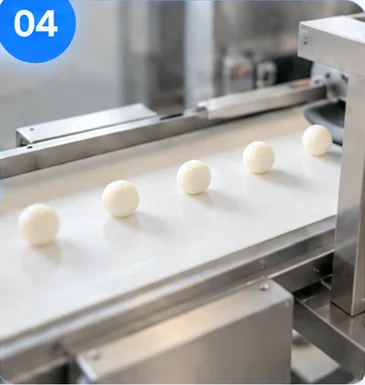

04Product discharge
Formed balls are discharged evenly onto the conveyor.
- Efficient production
- Consistent quality
- Process automation
- Uniform product size
Precise forming and consistent size
The machine portions the mixture and forms products with repeatable parameters. This helps maintain consistent size, a neat appearance and uniform weight in every batch.
Processing soft food mixtures
Results depend on moisture content, temperature, fat content, the amount of starch or flour, and recipe uniformity.
For new products, testing with the customer's actual mixture is recommended.
Stainless steel housing
Smooth metal surfaces make cleaning easier after processing cheese, potato and dough mixtures and help maintain production hygiene.
Quick-release
design
Working components can be quickly removed for cleaning and sanitising. This is particularly important when switching between cheese, potato and dough recipes.
Compact footprint
in your facility
The compact design allows installation in a small prepared-food or dairy facility without a complete redesign of the production area.
Machine operation video
Watch the ball forming machine in action: the forming unit, mixture feeding and product discharge. See the equipment operating to assess the forming process.
Machine operation
Forming process demonstration
Mixture feeding
Feeding product to the forming unit
Forming
Roller operation and ball formation
Finished product
Product discharge for further processing
Need a machine for your product?
SEND REQUEST Send us your production requirements — we will select a configuration.

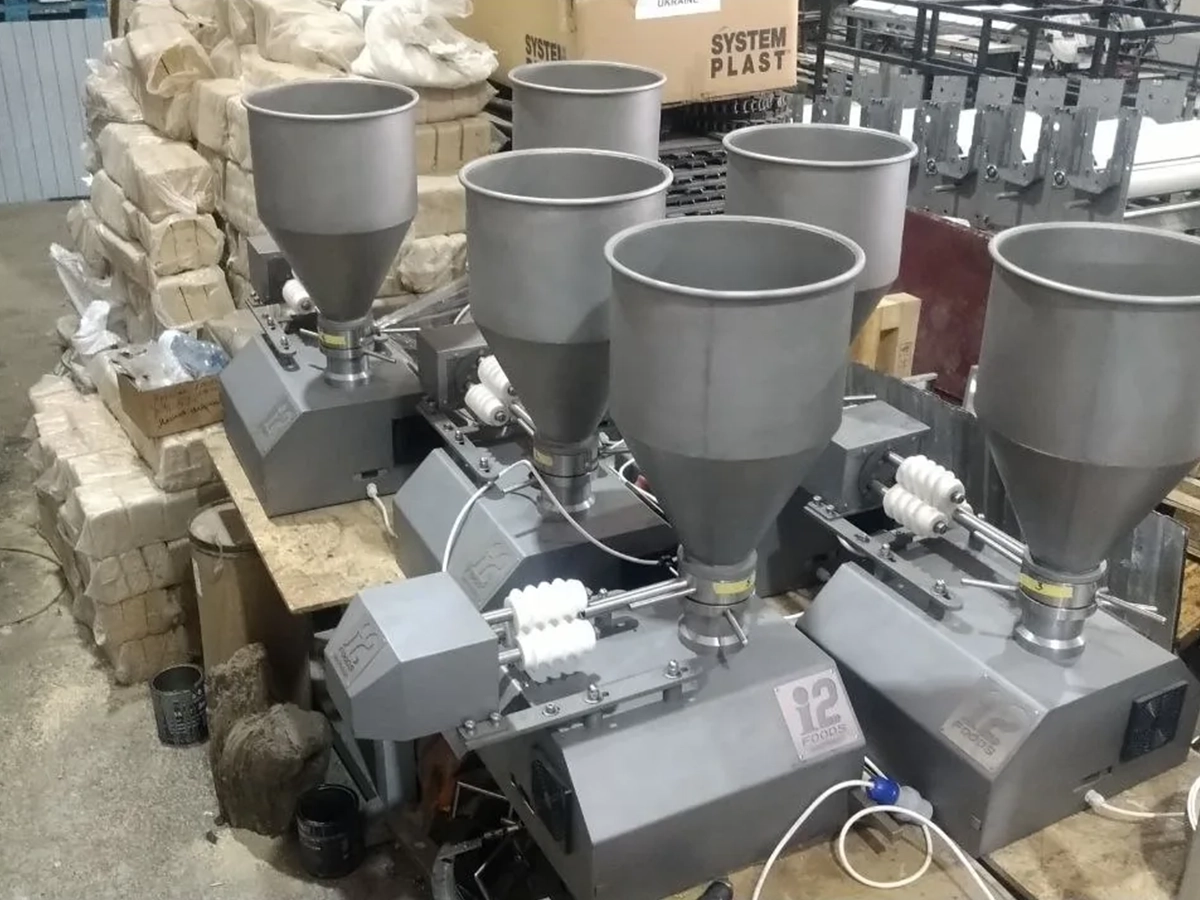

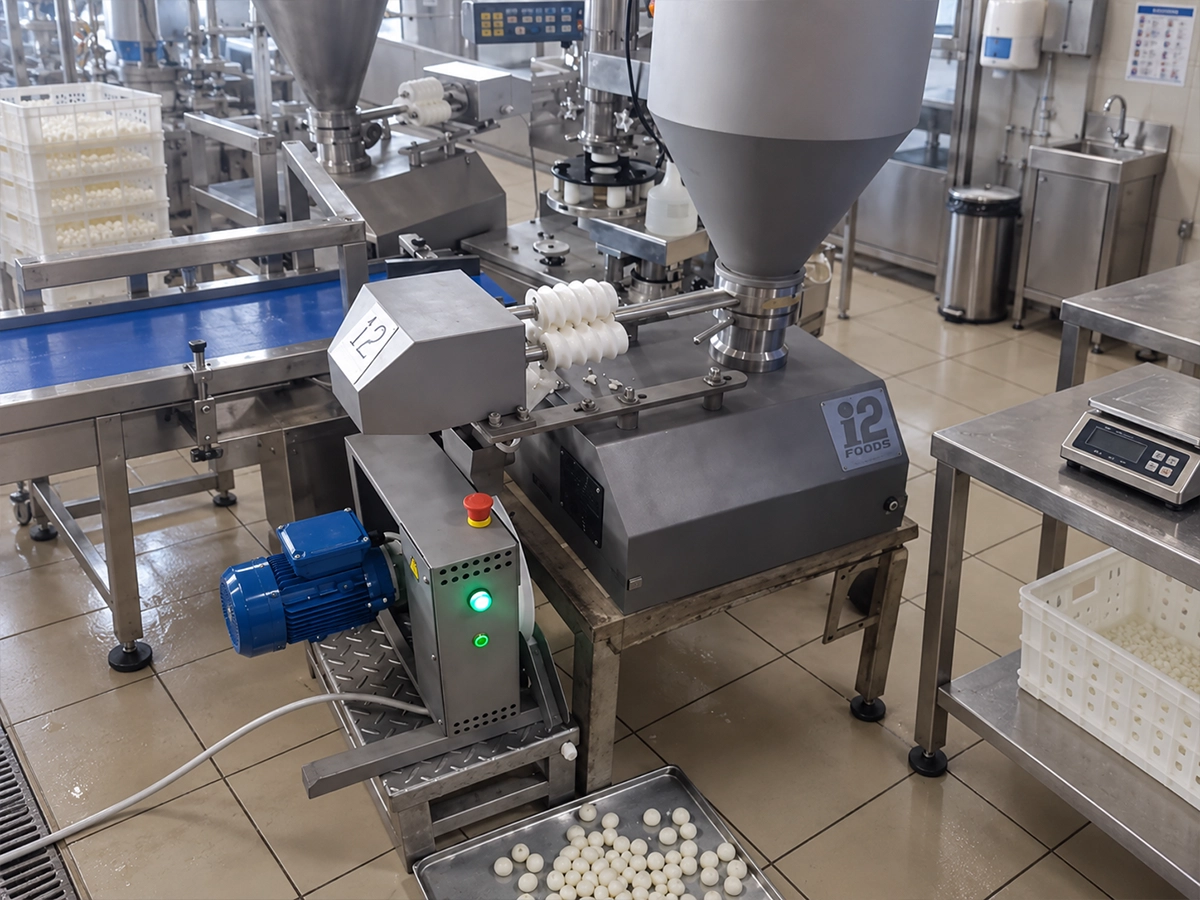

Completed projects

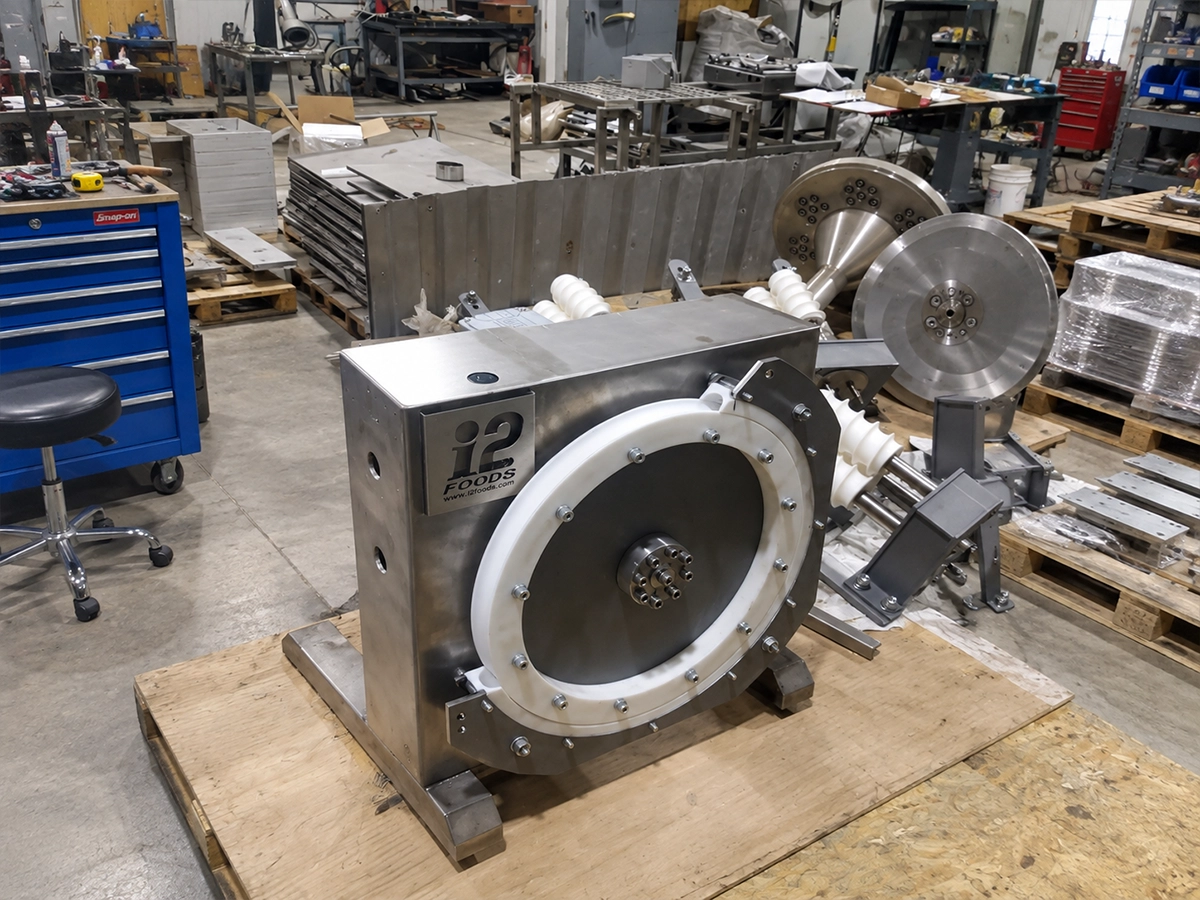

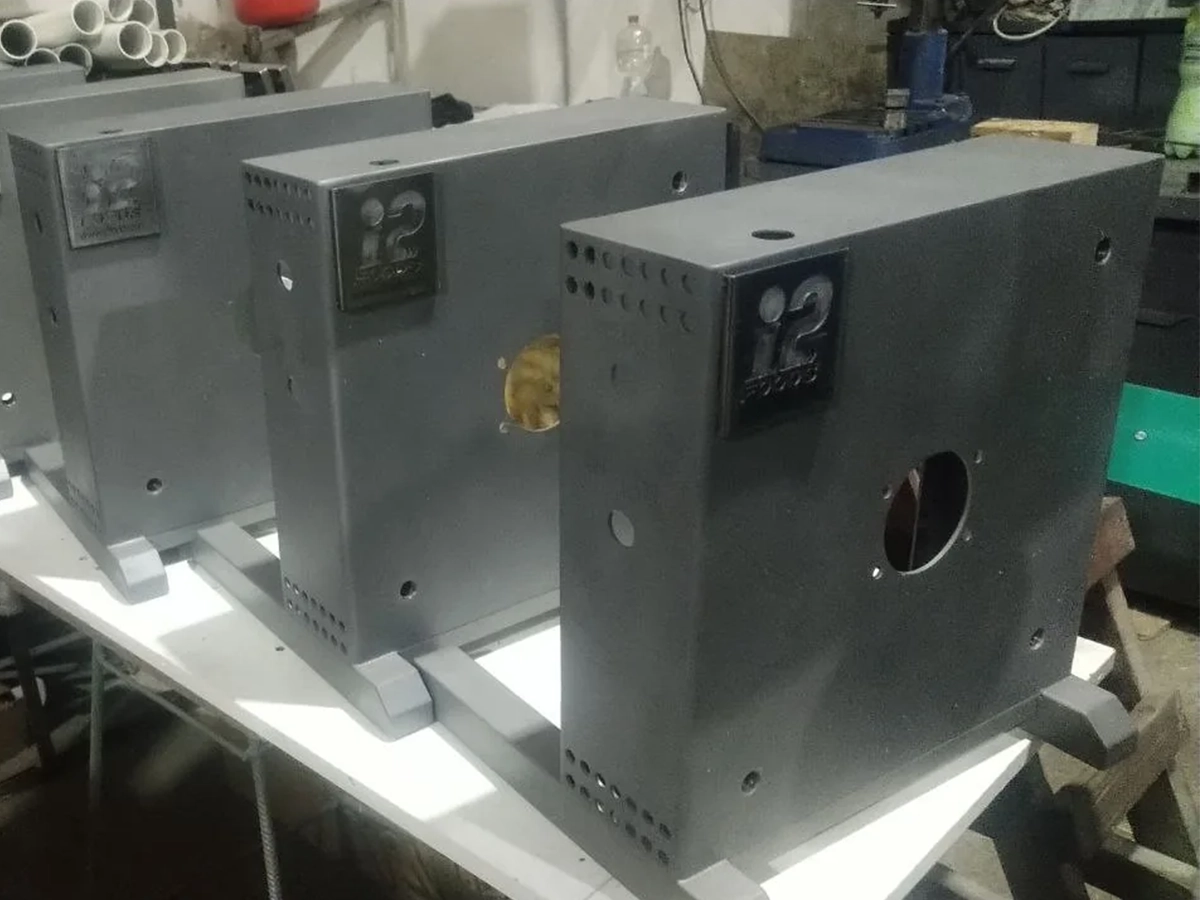

i2FOODS ball forming machines: from assembling housings and working units to completed equipment.

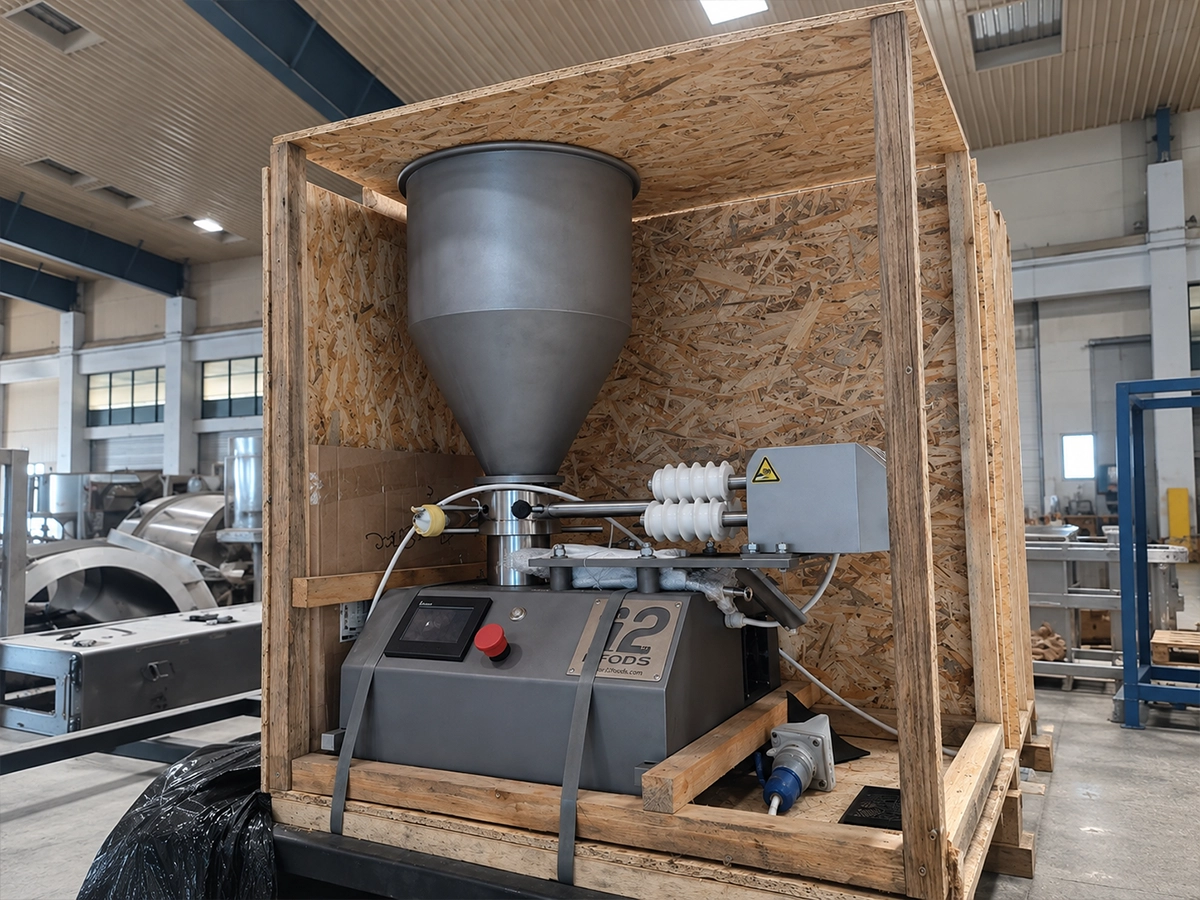

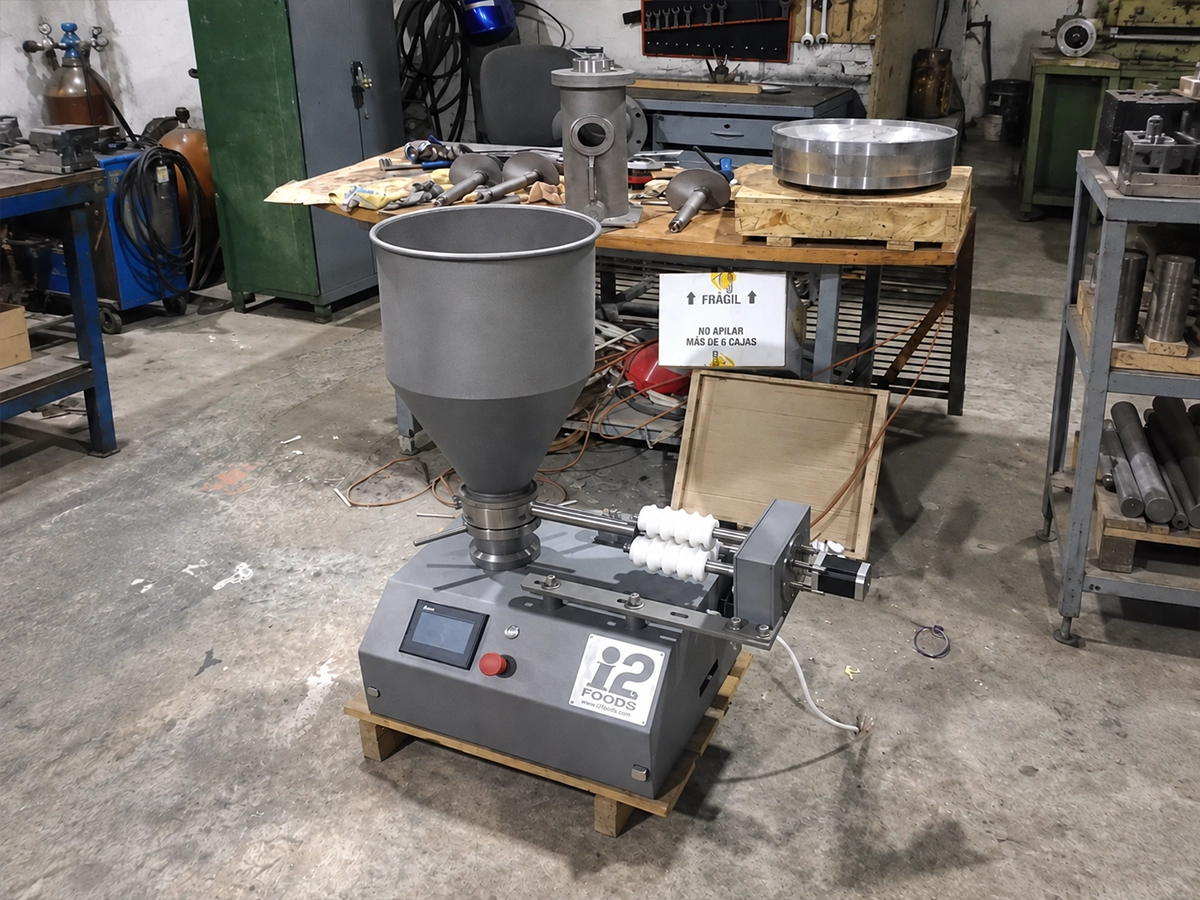

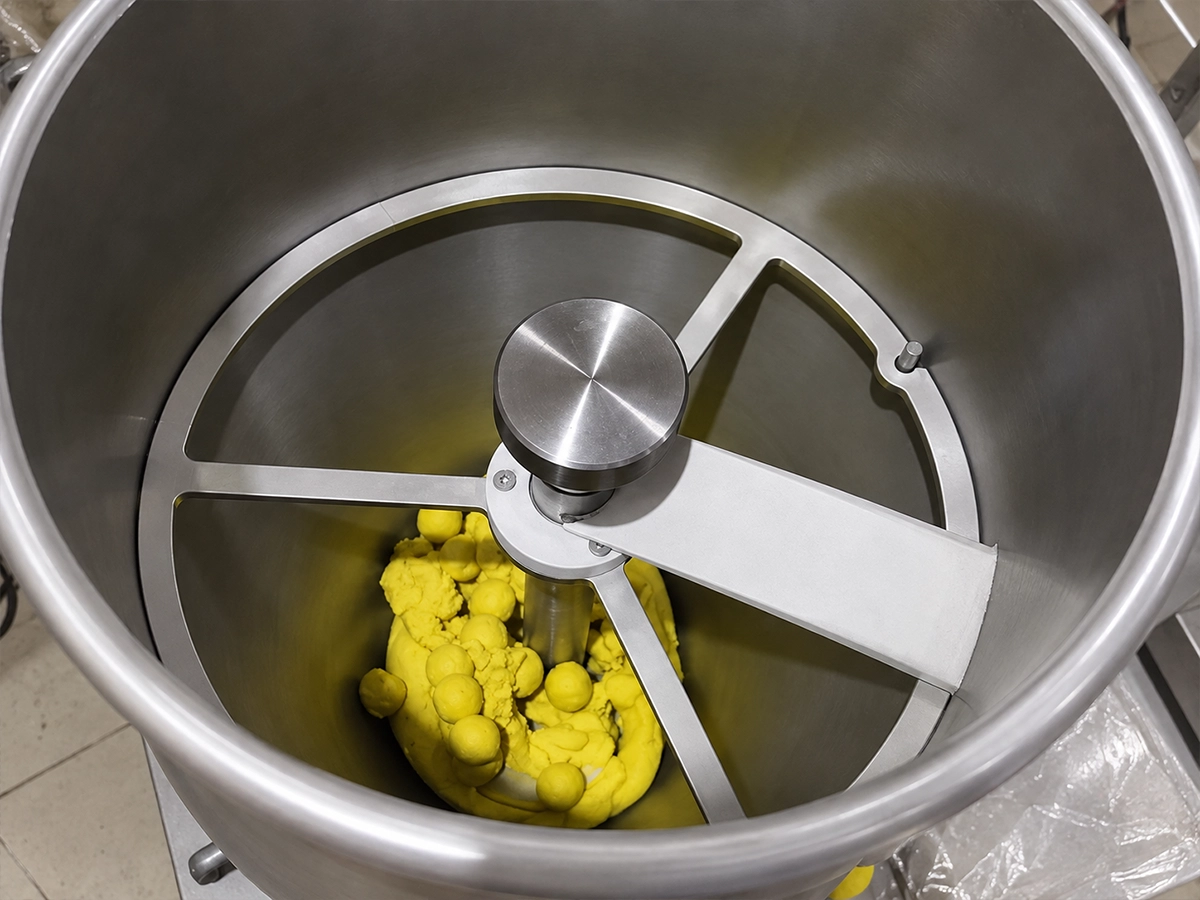

The gallery shows machines in the workshop, interchangeable forming rollers, transport packaging and formed balls at discharge.
Browse the photos or click an image to open it in full.
80–90 kg/hOutput
PLC/HMIControl system
Stainless steelHousing material
1 / 8
Technical specifications
| Parameter | Value |
|---|---|
| Main products | Cheese balls, dumplings, potato balls and croquettes |
| Output | 80–90 kg/h |
| Installed power | 0.37 kW |
| Power supply | 3 × 380 V |
| Dimensions, L/W/H | 35 × 39 × 68 cm |
| Parameter | Value |
|---|---|
| Weight | 36 kg |
| Housing material | Stainless steel |
| Control system | PLC/HMI |
| Cleaning | Quick-release working components |
| Interchangeable tooling | Selected for your product |
Product testing
For testing, provide a recipe or prepared mixture, desired diameter, weight per item, subsequent processing method and planned output.
Product range for forming
From cheese balls to potato convenience foods. We select the forming unit and settings for your mixture, product size and production process.
Mixed-ingredient balls
Cheese and flour, potato and cheese, potato with herbs — to an agreed recipe.
